产品名称： |
美格尔-继电器 |
|
产品尺寸： |

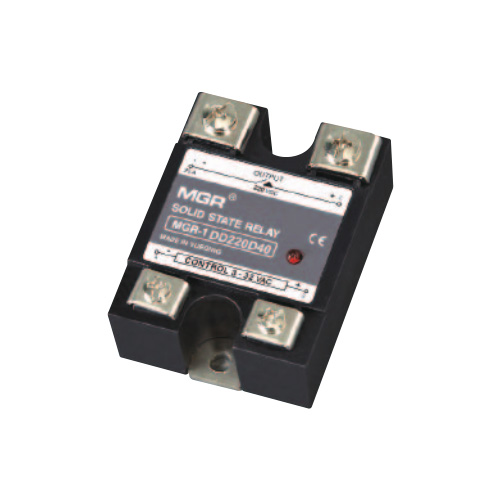

MGR-1 DD220D 直流固态继电器
MGR-1 DD220D40 21元/个
MGR-1 DD220D25 18元/个
MGR-1 DD220D60 34.5元/个
以上报价均含税运
|
|
产品说明： |
型号含义 Type meaning
`image.png`/
① 1 路 One channel
② 控制电压 3-32VDC Control voltage 3-32VDC
③ 直流控直流 DC-DC (DC input-DC output)
④ 负载电压 5-220VDC Load voltage 5-220VDC
⑤ 10A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 80A, 90A,100A
◎ 产品概述 Product overview
◆ 直流固态继电器易并联，适合大电流应用场合
◆ 额定电流：10A-100Amps
◆ 额定电压：5-220VDC
◆ 控制电流：≤ 40mA
◆ 低输出断态漏电流
◆ 低阻抗 MOSFET 输出，最大限度减少总功耗
◆ 适合阻性负载和感性负载 ( 感性负载如电机和 EMR/ 电磁线圈等必须加装抑制二极管 )
◆ 具有 LED 灯输出指示
◆ 包含标准输出的 R-C 缓冲器
◆ 透明保护盖为用户提供额外保护
◆ DC solid state relays are easy to connect in arallel, suitable for high current applications
◆ Rated current: 10A-100Amps
◆ Rated voltage: 5-220VDC
◆ Control current: ≤ 40mA
◆ Low output off-state leakage current
◆ Low-impedance MOSFET as the output component minimize the total power consumption
◆ Suitable for resistive load and inductive load
(the inductive load, such as motor and EMR /
electromagnetic coil, must be equipped with the
suppressor diode)
◆ Display output status via LED
◆ Standard output R-C buffer
◆ Transparent cover for extra protectio
注意 :
1. 当负载电流为 10A 时 , 必须加装散热器 ; 为 40A 及以上时 , 必须加风扇强冷或水冷 .
2. 使用感性负载时 , 务必在输出端并接一个压敏电阻 , 取值为负载电压的 1.6-1.9 倍 .
Notice:
1. If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
2. When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
◎ 安装尺寸及接线图 Installation dimensions and wiring diagram
`image.png`/
注：特殊电压可定做。Note: Specific voltage can be customized. |
|
